CIRCLE WITH A DOT

ok, I ahve an angle sensor for the parallels!

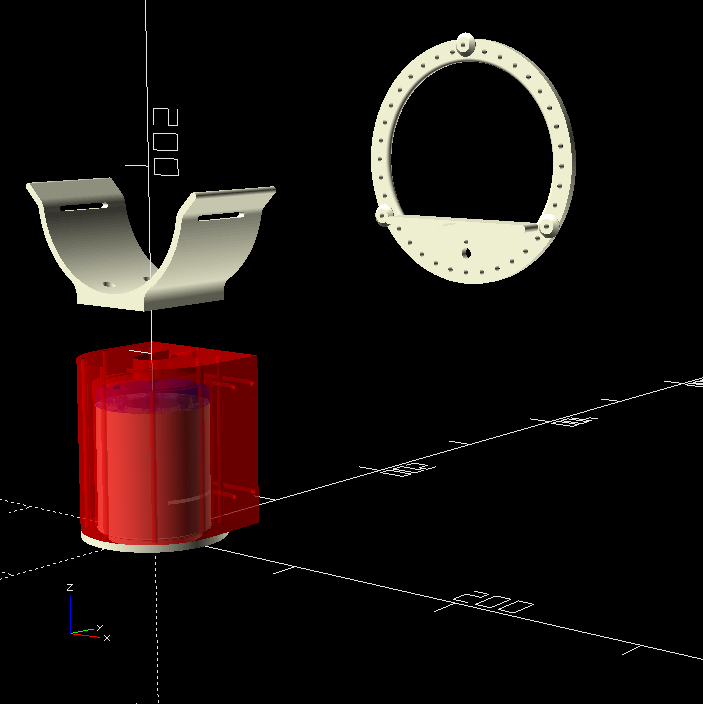

more parts designed, printers printing....

oooh, thats why the collision wasn't supposed to happen... ugh... ok, arg....

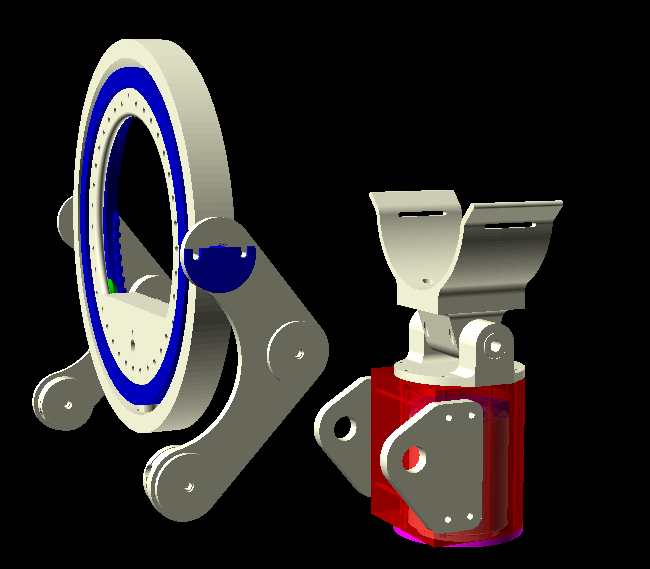

I suppose there is a critical mass effect. Here is another set of parts (the arm rest) that seems to be working out. printers are staying busy.

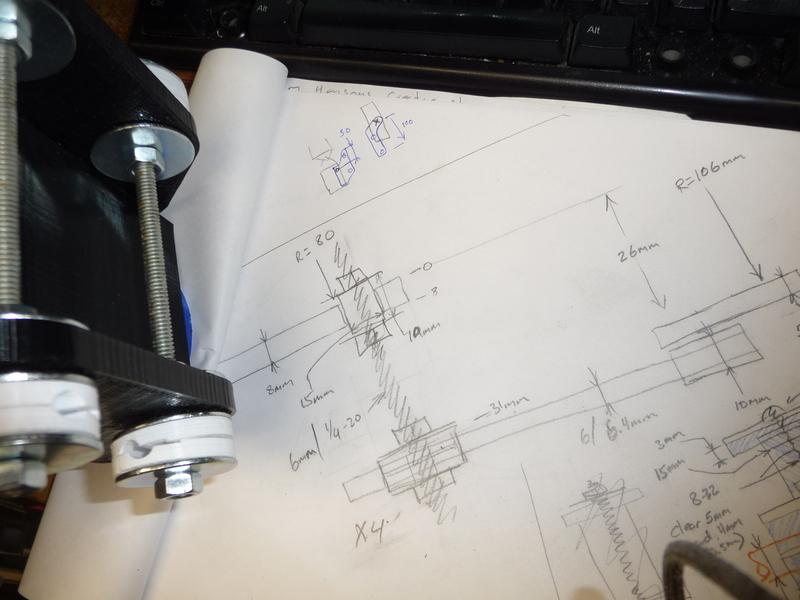

The design push causes me to pick up on things I wouldn't otherwise notice. Part of the time to make the thing is the pre-cad work, where I figure out what the heck I'm gonna make.

Its about 3am, I need to think for a bit on the next few parts, but, not right now...

@oscherler if I could, I would just get all white and use coloured sharpie pens to code them :]

its morning, did any of the printers screw up and waste huge amounts of palstic???

@yrabbit hmmm, or something simpler....

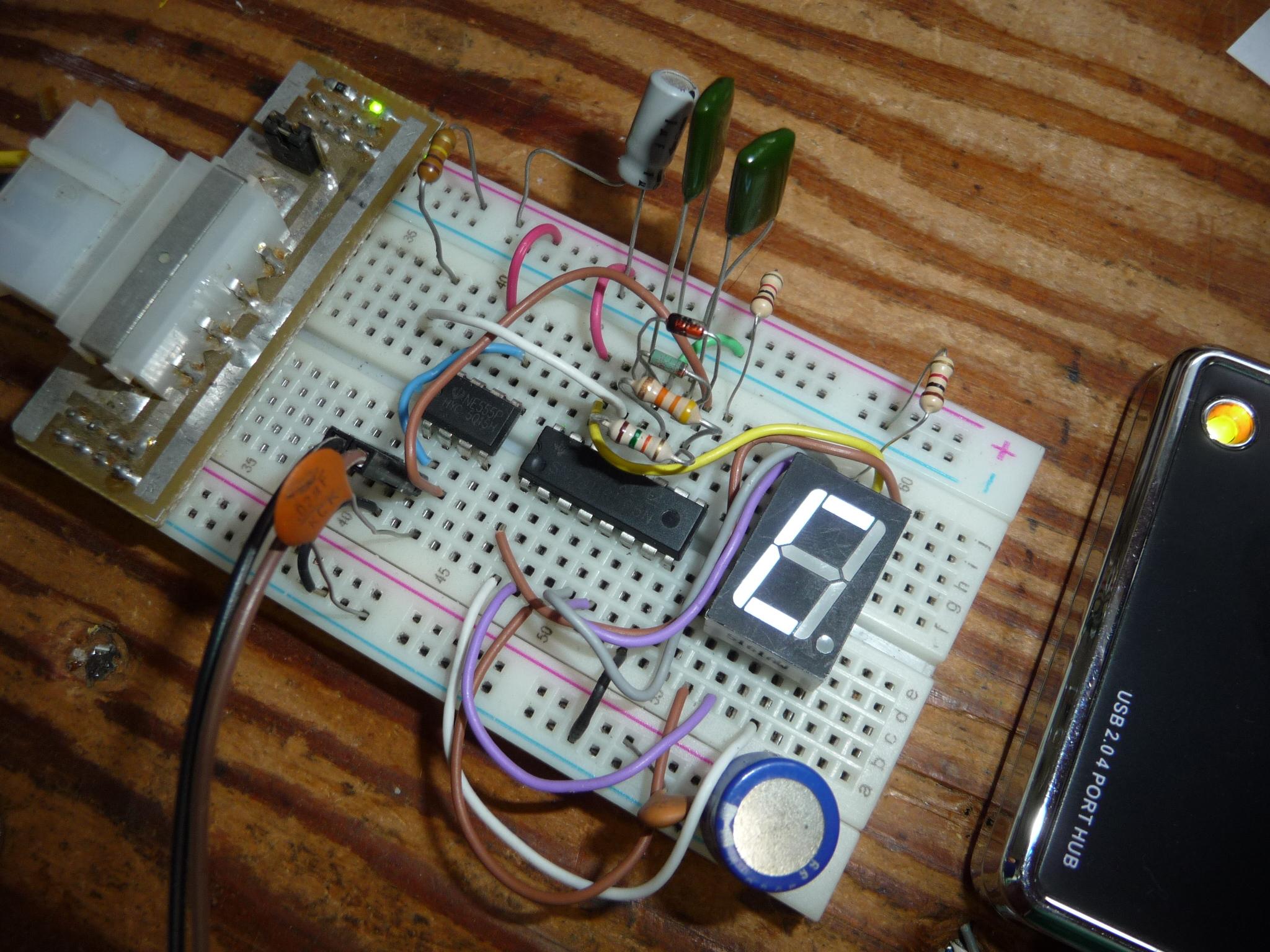

@sashabilton The 555 just inverts the serial data (side effect) and makes sure the voltages go from 0 to 5 (many of the serial converters output a high of only 3V) The RC magic distinguishes all the times into pulses. The magic is putting software on the sending side that "remodulates" the data

all the potentiometers are belonging to me now.

that design isn't mine, I was working on a copy tho.its somewhere in here... I think...

@gorplop I could really use putting our heads together for a while and fixing up the ch32 build system to work as smoothly as the avr stuff.

@niconiconi :]I have a silly question. If you poll the emulation, can you get faster performance? Sometimes its faster to poll the low latency part and IRQ the rest.

YESS! I was able to put blink on a ch32v006!

@gorplop how are you finding it compares to other fluxes?

*just to check*I'm dropping links to bluesky for the larger media items to go kind on infosec storage needs and because, to my knowledge, bluesky will let you watch the video without an account / login.its not blocking anyone fro seeing the videos is it?

Deer journal,Its 3am, I could not sleeep, so I implemented acceleration for the stepper motor on this weeks robot. did some other optimizationss, I'm sure everything will work fine, 8I will try it out tomorrow. ejsy vpi;f [pddon;u hp etpmh/

@projectgus hah, maybe they need to verify your age.

@TommyTorty10 yes, only particular inks will hold up to the etchant.One is staedtler lumocolor black permanent.The other is black sharpie.anything else is try-first. But the line weight needs to be *just right* which the plotter can do consistently
