assembling a few more OtterCam-s3‘s today.
-
@janamarie do you like that RJ45 socket? I’ve been looking for an SMD vertical one recently, but was put off by the all plastic ones (solely based on vibes)
(eventually settled for a mostly SMD metal option)
@ErinRose no, not really, but I also don't dislike it. I wouldn't reuse it
-
this board is somewhat of a nightmare fuel to networks people, please note the ethernet decoupling.. ~ :3c
@janamarie did… did you use capacitive coupling for ethernet?!
-
@janamarie did… did you use capacitive coupling for ethernet?!
@slyka mayb
-
@janamarie you deserve to get your sensors delivered to you like that <.<
-
@janamarie did… did you use capacitive coupling for ethernet?!
@slyka @janamarie it certainly does work
️
-
@slyka @janamarie it certainly does work
️@lasse @janamarie we have magjacks at home
-
speaking of…
this is how the image sensors were delivered. How does that make you feel?
-
I got this board assembled from JLCPCB, but a lot of components are still missing. This is mostly due to this board being one of the very early boards running through their PCBA process! I actually wrote on their blog about how the PCBA process works at the time, they allowed me to test it very early :3
@janamarie o.0 wdym test early?… i've used their pcba like 4 years ago???? 0w0
-
@janamarie o.0 wdym test early?… i've used their pcba like 4 years ago???? 0w0
@valpackett this board is older then
-
@valpackett this board is older then
@janamarie oooh you mentioned 2021 and that's when the actual pcb was made i seeee
-
@janamarie you deserve to get your sensors delivered to you like that <.<
@slyka I don't believe in the concept of deserving, but sure
-
@slyka I don't believe in the concept of deserving, but sure
@janamarie sorry, was just a dumb joke… >.<
-
two lovely beings recently started working on the firmware again, we now have a bare Debian Linux running on it, 'just' missing the image sensor driver and the mipi to encoder to USB/Ethernet stream pipeline… how ward can it be, right?
we have been working on this since *checks the note on the pcb* 2021..
@janamarie good things take time
-
@janamarie sorry, was just a dumb joke… >.<
@slyka don't worry, I liked it!
-
@janamarie good things take time
@Hammi awww :33
-
speaking of…
this is how the image sensors were delivered. How does that make you feel?
two of them! The second one was more nasty to solder, I was still faster, but it wouldn’t want to boot the first two tries

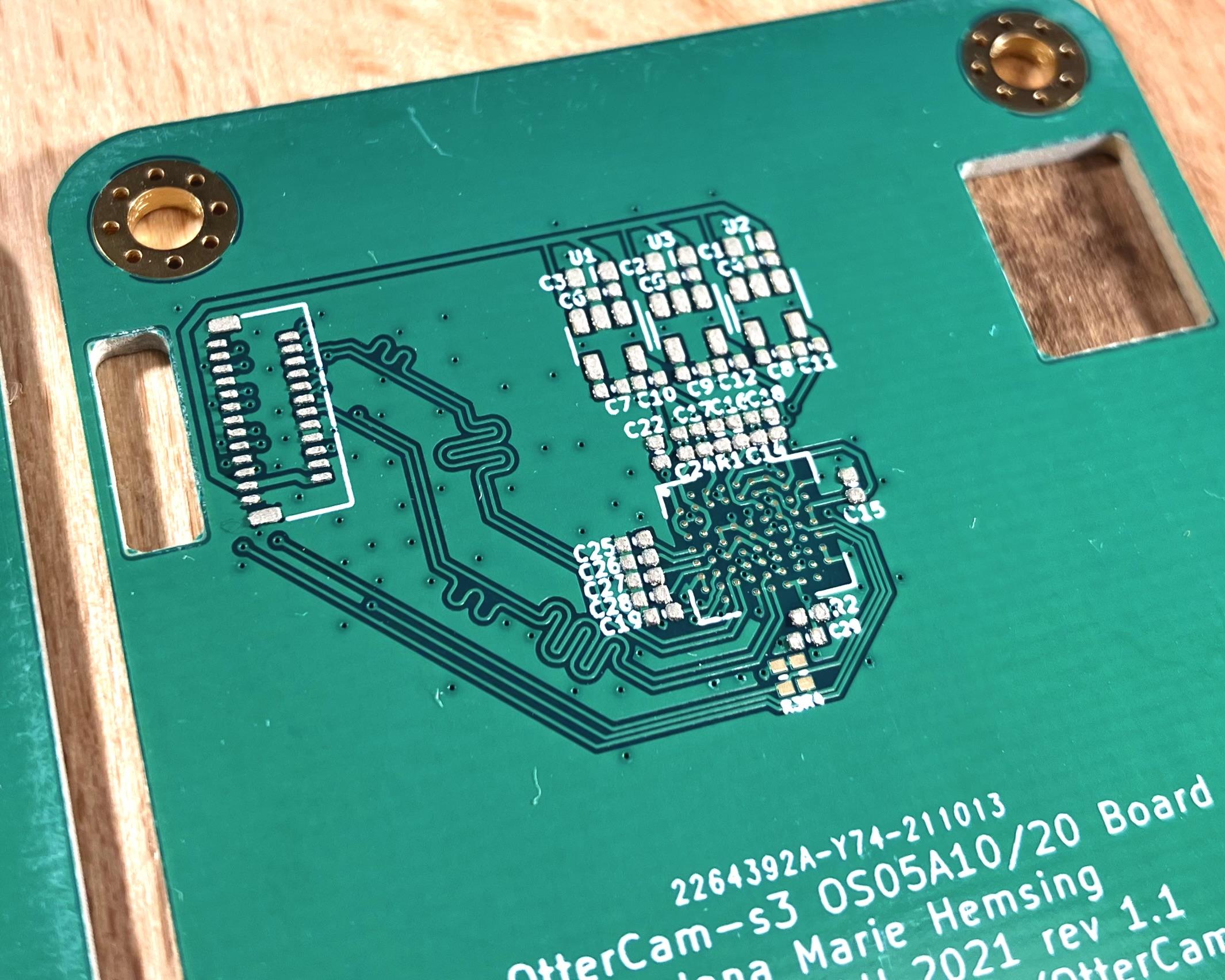

I think they are super cute, so small and they boot linux! The boards are just 50x50mm, you can make this a whole lot smaller of course, the OtterCastAudioV2 was smaller, but still.. :3
-
speaking of…
this is how the image sensors were delivered. How does that make you feel?
@janamarie how broken are they?
-
@janamarie how broken are they?
@Hammi they are just fine, don't worry :3
-
two of them! The second one was more nasty to solder, I was still faster, but it wouldn’t want to boot the first two tries
I think they are super cute, so small and they boot linux! The boards are just 50x50mm, you can make this a whole lot smaller of course, the OtterCastAudioV2 was smaller, but still.. :3
sensor soldering time!
-
sensor soldering time!
@janamarie BGA soldering always makes be extremely nervous. Good luck!
