Hello! It's #nakeddiefriday today, and what I got for you is yet another smartcard chip. Please welcome an unnamed die marked K2D0A, fabbed by STMicro. This came from [REDACTED], used to [REDACTED]. The die oriented with power supply pads on top, so it's possible to figure out which die pads correspond to which module pads. Unusually enough, there are 6 pads bonded out; the function of the extra
pad is not known at this time-- certainly not VPP.A short thread follows.
#electronics #reverseengineering #smartcards
-
R relay@relay.infosec.exchange shared this topic
-
Hello! It's #nakeddiefriday today, and what I got for you is yet another smartcard chip. Please welcome an unnamed die marked K2D0A, fabbed by STMicro. This came from [REDACTED], used to [REDACTED]. The die oriented with power supply pads on top, so it's possible to figure out which die pads correspond to which module pads. Unusually enough, there are 6 pads bonded out; the function of the extra
pad is not known at this time-- certainly not VPP.A short thread follows.
#electronics #reverseengineering #smartcards

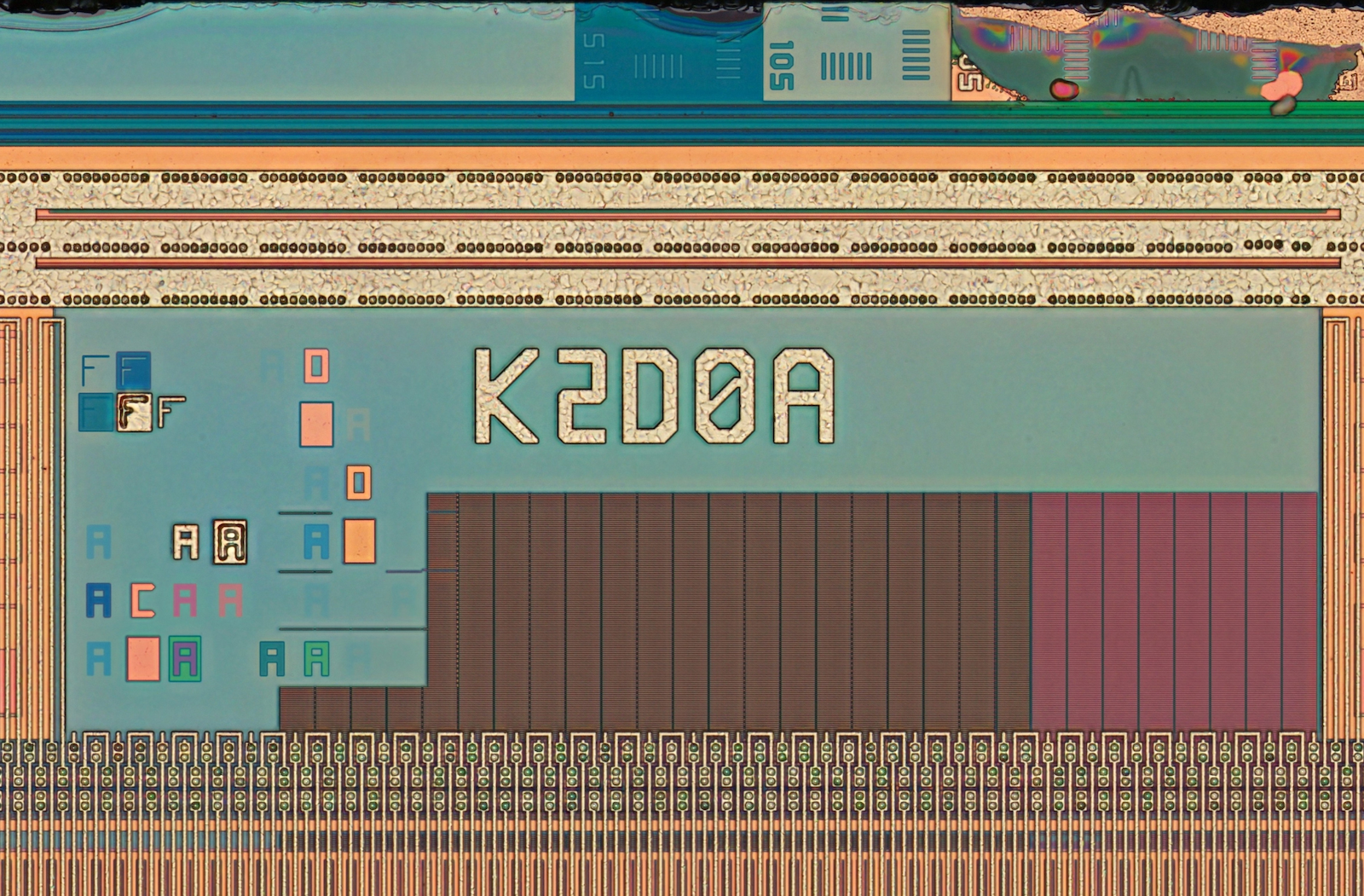

Die ID for visual identification. There is no ST logo, but it is highly certain it's them. Alignment and mask revision marks are also visible.
-
Die ID for visual identification. There is no ST logo, but it is highly certain it's them. Alignment and mask revision marks are also visible.

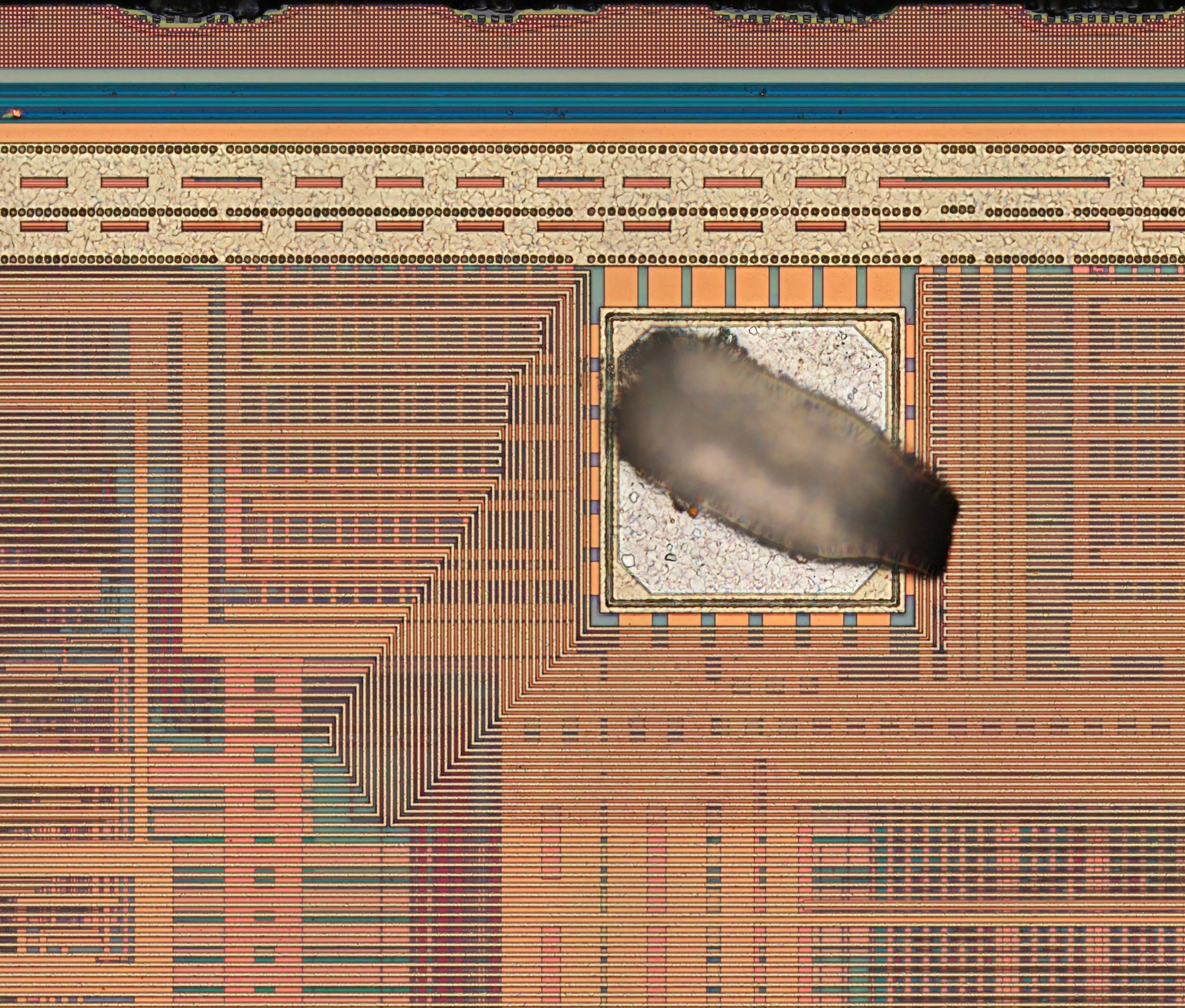

Right there lies mesh circuitry: three rows of contacts going to mesh wires on top of the die. Technically, the design has a mesh layer... but it is as effective as a fig leaf.
